Short Wave Infrared Heaters, Industrial Short wave Infrared Module, Mumbai, India

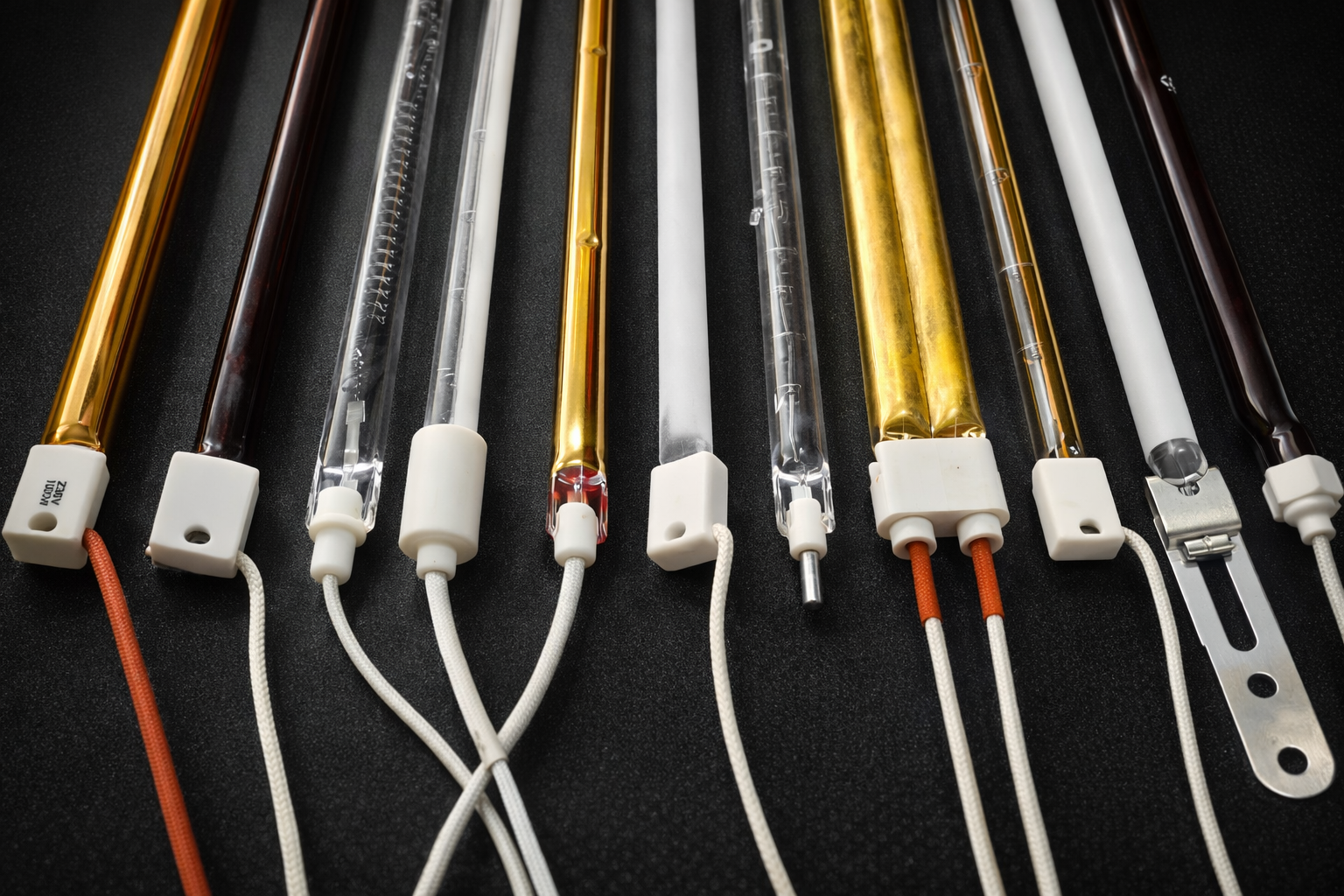

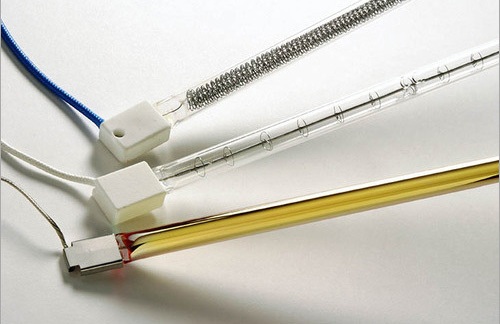

Short Wave Infrared Heaters

Short wave infrared for the range from 780 nm to 1400 nm, these emitters radiates high heating power. Short wave infrared heaters find its application in the process that requires quick response as short wave IR heaters achieves full temperature with in second.

Shortwave IR heaters from KERONE are appropriate for all applications in which the attainment of high temperatures in the shortest possible. Radiation eliminates the heat loss arising out of convection and saves energy being used in heating. The heat is delivered directly to the material as the infrared waves penetrate the material to be heated.

  • High radiation density at low space requirements
  • Shorter no heating and cooling times
  • Good depth of radiation penetration into the material
  • Heated lengths from 1 inch up to 120 inches
  • Infinitely adjustable fast-reaction control
  • Stock, custom and OEM sizes
  • Linear power up to 400 Watts per inch
  • Twin tube heaters, tube format 23 x 11 mm
  • Filament temperature 1800 - 2200 °C
  • PET performs heating in stretch blow moulding machines.
  • Printing ink drying in offset machines.
  • Paper coating drying.
  • Pre-heating before embossing.
  • Screen printing curing on T-shirts.
  • Textiles and various such applications.
