Plastic Annealing Oven

Introduction

Kerone provides advanced plastic annealing oven engineered to deliver precision, reliability, and high operational efficiency. With 50+ years of multidisciplinary engineering expertise, Kerone designs fully customized systems tailored to industrial heating, drying, thermal processing, and laboratory standards.
We design, Manufacture, supply and install plastic annealing heating system that heats the plastic at specified rate till it achieves uniform Annealing temperature through entire surface of plastic material, once the annealing temperature is achieved plastic annealing heater maintains the annealing temperature for specified time duration based on the type of plastic under process, later cooling down the plastic at fixed to achieve to achieve the ambient temperature.

Why Choose Kerone Plastic Annealing Oven

Kerone’s Plastic Annealing Ovens are specifically designed with the thermal sensitivity of plastics in mind, featuring gentle forced convection to prevent surface marking, tight temperature uniformity of ±2°C or better, and fully programmable ramp-and-soak controllers that manage the critical heating and cooling rates needed for effective stress relief. Kerone’s engineers work closely with clients to develop the optimal annealing cycle for each specific plastic material — whether acrylic, polycarbonate, nylon, PTFE, or PEEK, ensuring consistent results and maximum product quality.
Annealing is Process to heating plastic to particular temperature where it soften and becomes free flow, Placed in mold for taking shape, later slowly cooling down. Plastic annealing process helps in reducing the stress with in plastic and makes it more rugged, better finished product, suitable for the high strength applications

Types and Features of Plastic Annealing Oven

Kerone offers Plastic Annealing Ovens in both batch and continuous configurations. Batch models range from small bench-top units for prototype work to large walk-in chambers for production volumes. Continuous tunnel ovens with conveyor systems are available for high-volume applications. All models feature programmable multi-ramp controllers, forced air recirculation with adjustable speed, and stainless steel interiors for contamination-free processing.

KERONE specializes in the manufacturing of various types of Plastic Annealing Heaters, designed to meet diverse industrial requirements with precision temperature control and reliable performance.

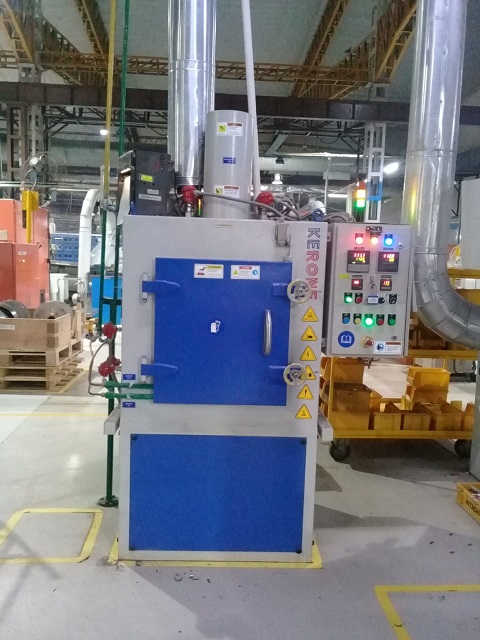

Batch Type Plastic Annealing Heater

Batch plastic annealing heaters are the most commonly used systems for annealing applications. These units are equipped with doors for loading and unloading trays or racks, after which the material is heated at a controlled rate. Batch systems are also available in multi-stack configurations to accommodate multiple trays simultaneously. However, as a non-continuous process, they require longer annealing cycles due to restricted airflow and batch-wise operation.

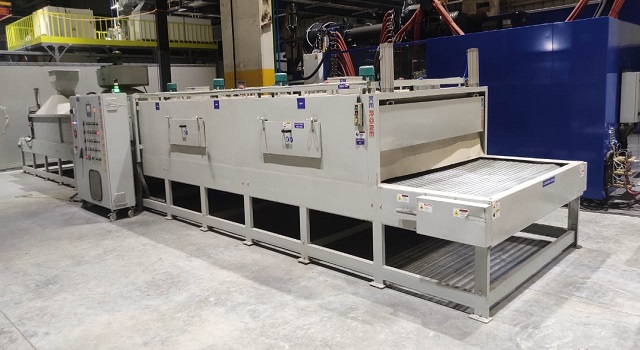

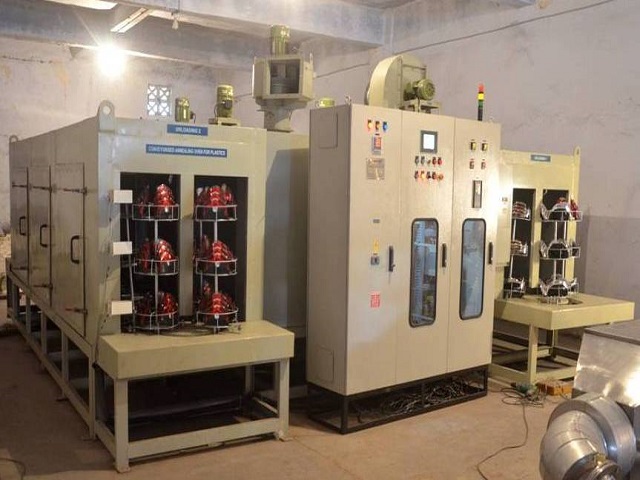

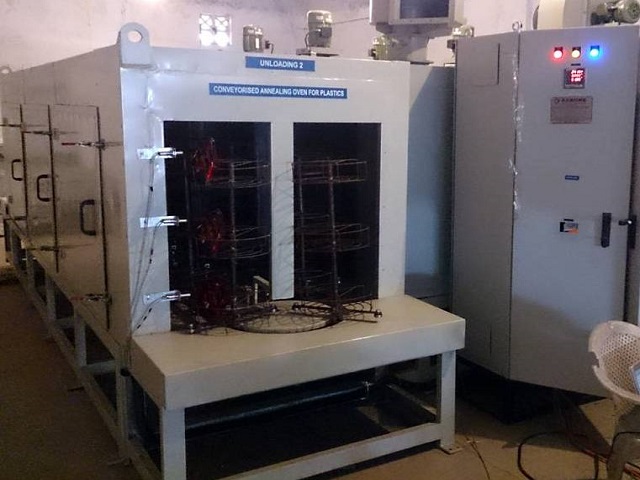

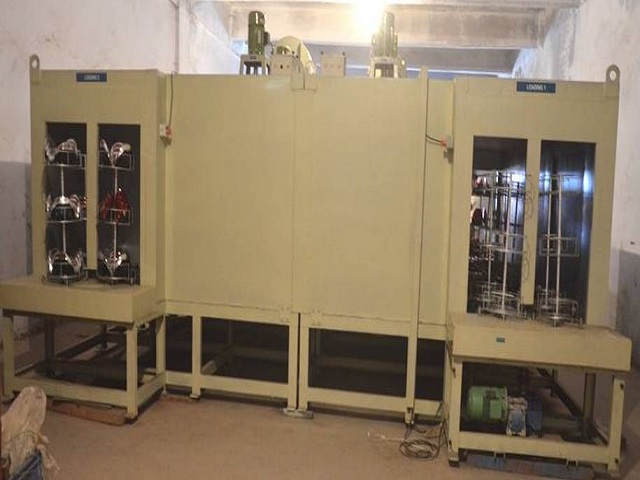

Conveyorized Plastic Annealing Heater

Conveyorized plastic annealing heaters operate on a continuous process principle. Plastic components are placed on a conveyor belt that moves through a tunnel-like oven equipped with a customized heating arrangement. This continuous system significantly reduces annealing time compared to batch ovens and is highly suitable for large-scale industrial production due to its efficiency and automation compatibility.

Infrared Plastic Annealing Heater

Infrared plastic annealing heaters are continuous ovens that use infrared radiation as the primary heat source. Plastic parts absorb energy transmitted through infrared waves, enabling rapid and efficient heating. This method accelerates the annealing process while maintaining precise temperature control and improved product quality.

Key Features

Uniform heating and thermal control
Energy-efficient operation
Customizable airflow, temperature, and power settings
Available in electric, fuel-fired, infrared, gas-fired, or hybrid systems
Safety interlocks and smart automation
Low maintenance and robust construction

Powered by AI, ML & IoT

Future-Ready Engineering Driven by AI & IoT

Our advanced AI, ML, and IoT technologies, this solution delivers smarter automation, real-time insights, and predictive intelligence to enhance efficiency and drive future-ready growth.

Real-Time Monitoring & Control

Continuous tracking of process parameters with instant adjustments.

Predictive Maintenance

Intelligent fault detection to prevent failures before they occur.

Adaptive Process Optimization

Dynamic tuning of operations for maximum output and efficiency.

Cloud Dashboards & Analytics

Unified access to real-time insights and performance trends.

Energy & Resource Savings

Smarter utilization of energy to cut costs and reduce waste.

Secure IoT Connectivity

Encrypted data flow with seamless integration across plant systems.

Applications of Plastic Annealing Oven

Kerone’s Plastic Annealing Ovens are extensively used in precision engineering, medical device manufacturing, and electronics industries. Typical applications include:

Stress relief annealing of machined acrylic, polycarbonate, and nylon components

Post-mold annealing of injection-molded engineering plastic parts

Dimensional stabilization of precision plastic parts before assembly

Conditioning of PTFE, PEEK, and other high-performance polymer components

Pre-conditioning of plastic substrates before coating or bonding

Annealing of optical plastic components for improved clarity and stability

Kerone’s plastic annealing oven ensures high performance, operational stability, and superior energy efficiency. Each system is designed for long-term reliability and industry-specific optimization.
Plastic Annealing Ovens provide the precise temperature control and gentle processing environment that plastic components require for effective stress relief and dimensional stabilization. By investing in the right annealing equipment, manufacturers can significantly reduce part rejection rates, improve product longevity, and achieve consistent quality across production batches. Kerone’s technical expertise and commitment to after-sales service ensure that clients receive the most effective annealing solution for their specific plastic processing needs.
