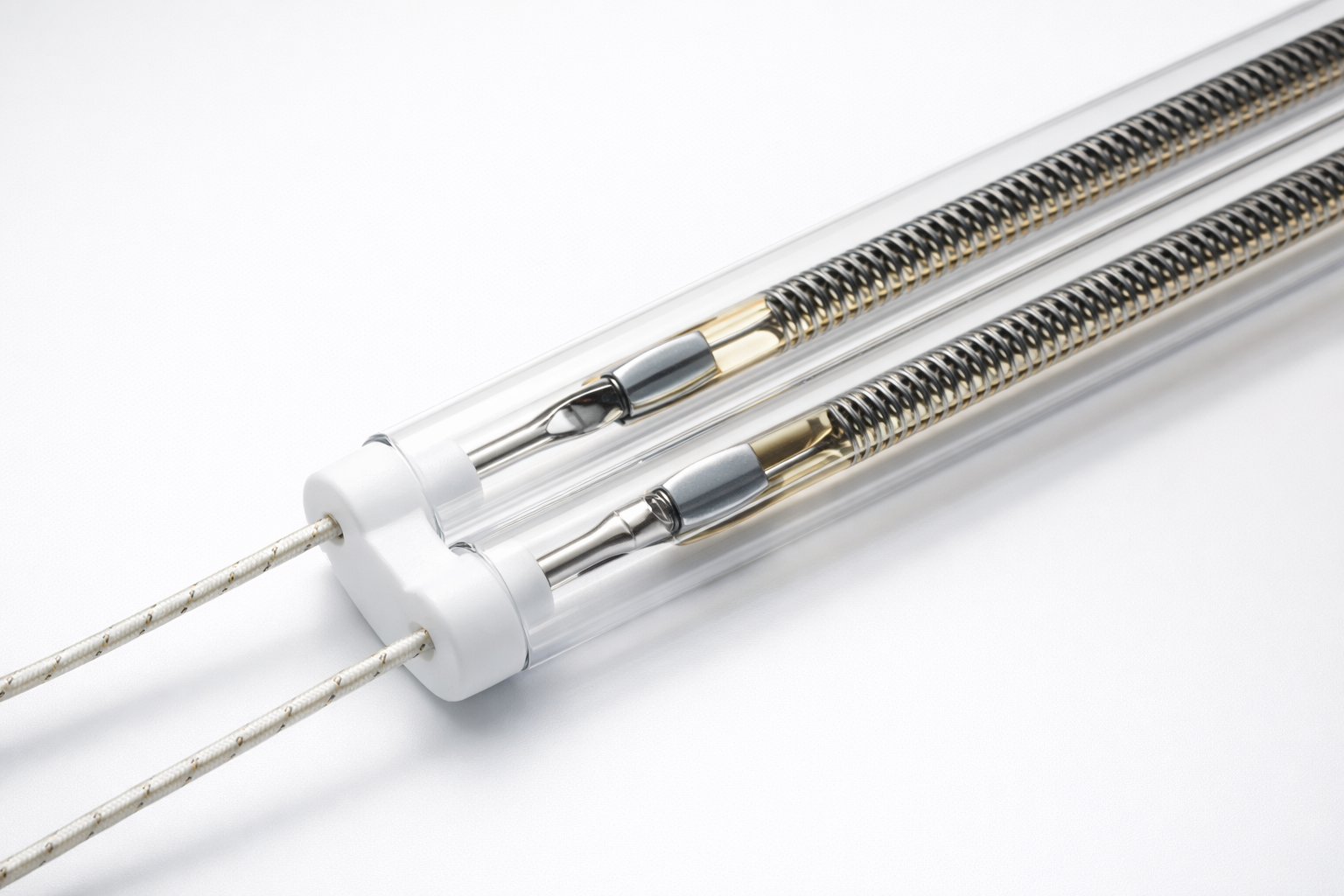

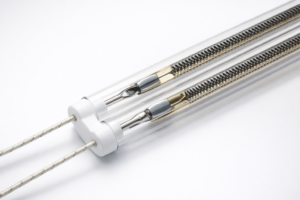

Our Twin Tube MW IR Heater is made up of 8-shape high-purity clear quartz twin tube, with each tube having Ni-Chrome heating coil that runs in U Shape in the tube.

Features

• Heating up and cooling down time is approximately 50 secs.


• Available with gold reflector and without reflector.


• The outer rear side of the tube of the reflector has the gold coating.




• Heat loss from backside is prevented by the reflector, thereby power is saved.




• Results in making surrounding work area cooler.




• Increases the efficiency and directionality of the heater.

Specifications

• Standard sizes (in cross section): 11 mm x 23 mm & 15 mm x 32 mm.


• Maximum length: 200 mm.


• Power density: 60 KW / m2 can be achieved.
